Korbak HC3 CuCoNiBe

Hardness and high heat resistance combined with high electrical and thermal conductivity. The rate of Be is lower than Korbak HC1


DIN ASTM RWMA
w.nr. -2.1285 -C 17500 Class III
product-large-image

Some Applications

  • Resistance welding cosumables (discs,electrodes,holders)
  • Mesh welding electrodes
  • Plunger tips for aluminium injection casting
  • Gravity casting dies for brass or non-ferrous casting
  • Inserts or cooling plate of plastic injection moulds
  • Appl. where require thermal stability
Mesh welding electrodes & welding discs
Mesh welding electrodes & welding discs

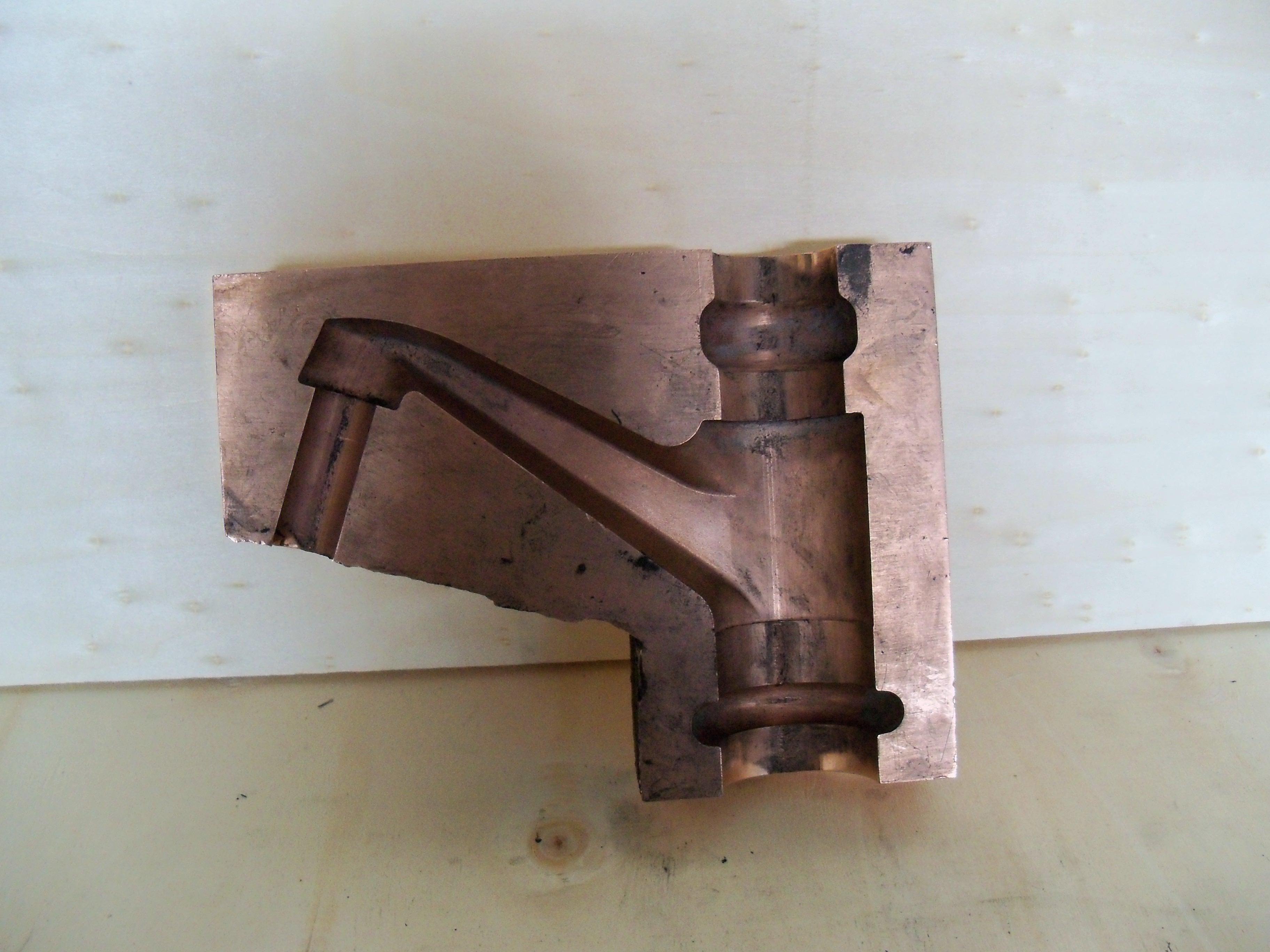

Casting die
Aluminium injection plungers
Cooling plate of plast. İnj. mould

Mechanical & Physical Properties

Hardness 220-270 HB
Yield Strength 650-840 Mpa
Tensile Strength 680-900 Mpa
Electrical Conductivity %48 I.A.C.S.
Gravity 8,8 gr/cm³
Chemical Composition Co:1,0 – Ni:1,0- Be:0,5 Other:0,2 Cu: Rest
