Korbak HC1 CuBe2

It has great hardness, very good strength, high electrical and thermal conductivity. It can be used in some applications which needs very high hardness. Additionally it is non-sparking material for using in combustible atmosphere.


DIN ASTM RWMA
w.nr. 2.1247 C 17200 Class IV
product-large-image

Some Applications

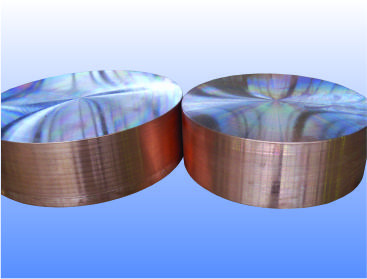

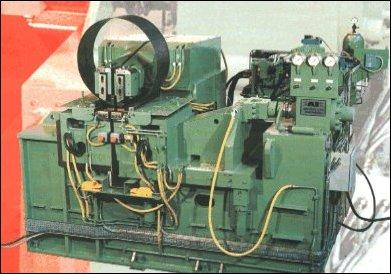

  • Seam weldind discs (wheels)

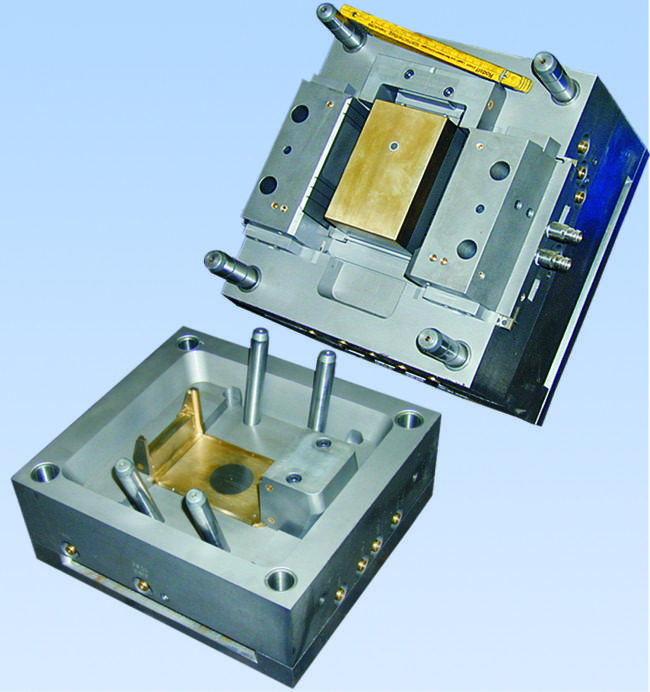

  • Bottom cooling plate of plastic injection moulds

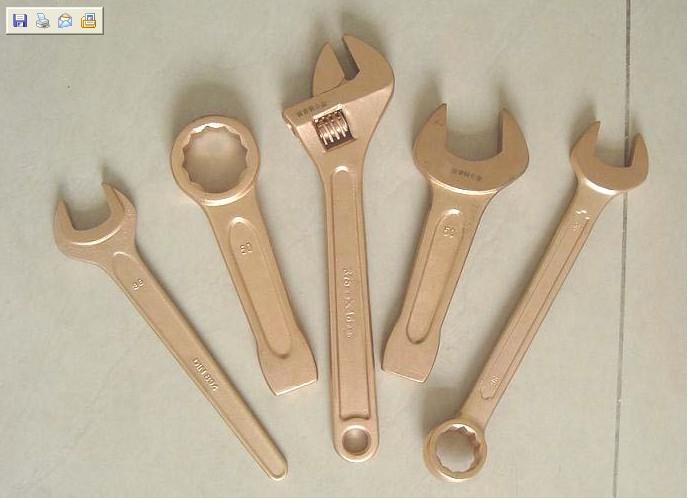

  • Non-sparking hand tools

Mechanical & Physical Properties

Hardness 370-430 HB
Yield Strength 960-1060 Mpa
Tensile Strength 1.210-1.310 Mpa
Electrical Conductivity %26 I.A.C.S.
Gravity 8,3 gr/cm³
Chemical Composition Be:2,0 – Ni +Co :0,7 Other:0,2 Cu: Rest
